Description
Explore the Paguro 22 EK Generator 22 kVA, a dependable 22 kVA diesel power source for various applications.

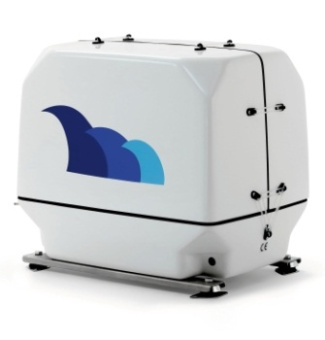

Paguro 22 EK Generator: 22 kVA Power Solutions for Large Vessels
The Paguro 22 EK is a high-performance marine generator designed to meet the substantial power demands of large yachts and commercial vessels. Manufactured by VTE Srl in Italy, this generator combines advanced technology, robust design, and quiet operation to provide reliable and efficient power at sea.
🔧 Key Features
1. Power Output
-
Continuous Power: 20 kW (22 kVA)
-
Voltage: 230V (single-phase)
-
Frequency: 50 Hz
-
Phase: Single-phase
2. Engine Specifications
-
Engine Model: Kohler KDI 2504-M
-
Engine Type: 4-cylinder, turbocharged diesel
-
Engine Speed: 1500 RPM
-
Cooling System: Freshwater with heat exchanger
-
Fuel Consumption: Approximately 0.35 liters per kW per hour
3. Noise Level
-
Operating Noise: 49 dB(A) at 7 meters
-
Design: Supersilenced with a four-stage soundproof capsule and dual anti-vibration mounts
4. Dimensions and Weight
-
Dimensions (L×W×H): 1224 x 631 x 828 mm
-
Weight: 520 kg
5. Safety Features
-
Automatic Shutdown: In case of low oil pressure or overtemperature
-
Control Panel: Equipped with a remote LCD panel displaying hour meter, load indicator, frequency, and engine RPM
⚙️ Technical Specifications
| Specification | Details |
|---|---|
| Model | Paguro 22 EK |
| Continuous Power | 20 kW (22 kVA) |
| Voltage | 230V (single-phase) |
| Frequency | 50 Hz |
| Phase | Single-phase |
| Engine | Kohler KDI 2504-M |
| Engine Type | 4-cylinder, turbocharged diesel |
| Engine Speed | 1500 RPM |
| Cooling System | Freshwater with heat exchanger |
| Fuel Consumption | 0.35 liters/kW/h |
| Noise Level | 49 dB(A) at 7 meters |
| Dimensions (L×W×H) | 1224 x 631 x 828 mm |
| Weight | 520 kg |
| Safety Features | Low oil pressure and overtemperature shutdown |
| Control Panel | Remote LCD panel with hour meter, load indicator, frequency, and engine RPM |
🚢 Ideal Applications
The Paguro 22 EK is suitable for:
-
Large Marine Vessels: Providing reliable power for onboard systems and equipment.
-
Commercial Marine Operations: Supporting essential operations with consistent power.
-
Recreational Yachts: Ensuring a quiet and comfortable experience on the water.
💡 Why Choose Paguro 22 EK?
-
High Power Output: Delivers 20 kW (22 kVA) of continuous power, suitable for demanding applications.
-
Quiet Operation: Operates at a noise level of 49 dB(A) at 7 meters, ensuring a peaceful onboard environment.
-
Advanced Technology: Equipped with a Kohler KDI 2504-M engine and a four-stage soundproof capsule for efficient and smooth operation.
-
Compact Design: Dimensions of 1224 x 631 x 828 mm and a weight of 520 kg make it suitable for various installations.
