Description
Discover the Paguro 6000 Generator 5.0 kW, a compact solution for reliable power in marine applications.

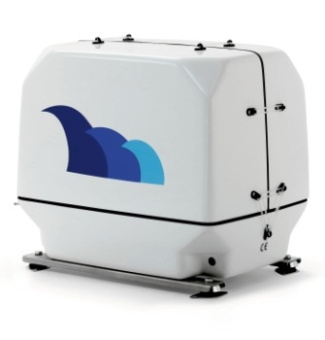

The Paguro 6000 is a compact and efficient marine diesel generator designed to meet the power needs of various onboard systems. Manufactured by VTE Srl in Italy, this generator combines performance, reliability, and quiet operation, making it an excellent choice for recreational and commercial vessels.
🔧 Key Features
1. Power Output
-
Continuous Power: 5.5 kW (60 Hz) / 5.0 kW (50 Hz)
-
Voltage Output: Single-phase 115/230 V (60 Hz) / 230 V (50 Hz)
-
Peak Current: 140 A (60 Hz) / 70 A (50 Hz)
2. Engine Specifications
-
Engine Manufacturer: Lombardini
-
Engine Model: LDW 502
-
Cylinders: 2
-
Engine Speed: 3000 RPM (50 Hz) / 3600 RPM (60 Hz)
-
Cooling System: Freshwater with heat exchanger
-
Fuel Consumption: Approximately 0.35 liters per kW per hour
-
Starting System: Electric (12V)
3. Noise Level
-
Operating Noise: 52 dB(A) at 7 meters
-
Design: Supersilenced with water-cooled alternator and acoustic insulation
4. Dimensions and Weight
-
Dimensions: 660 x 460 x 600 mm
-
Weight: 130 kg
5. Safety Features
-
Automatic Shutdown: In case of low oil pressure or overtemperature
-
Control Panel: Equipped with warning lights and a load indicator with LED column for immediate power usage evaluation
⚙️ Technical Specifications
| Specification | Details |
|---|---|
| Model | Paguro 6000 |
| Power Output | 5.5 kW (60 Hz) / 5.0 kW (50 Hz) |
| Voltage Output | 115/230 V (60 Hz) / 230 V (50 Hz) |
| Engine | Lombardini LDW 502 |
| Cylinders | 2 |
| Engine Speed | 3000 RPM (50 Hz) / 3600 RPM (60 Hz) |
| Cooling System | Freshwater with heat exchanger |
| Fuel Consumption | 0.35 liters/kW/h |
| Noise Level | 52 dB(A) at 7 meters |
| Dimensions (L×W×H) | 660 x 460 x 600 mm |
| Weight | 130 kg |
| Safety Features | Low oil pressure and overtemperature shutdown |
| Control Panel | LED load indicator and warning lights |
🚢 Ideal Applications
The Paguro 6000 is suitable for:
-
Marine Vessels: Providing reliable power for onboard systems and equipment.
-
Recreational Boating: Ensuring a quiet and comfortable experience on the water.
-
Commercial Marine Operations: Supporting essential operations with consistent power.
💡 Why Choose Paguro 6000?
-
Reliability: Built with high-quality materials and engineering, ensuring consistent performance.
-
Efficiency: The freshwater cooling system and advanced design contribute to fuel efficiency and reduced emissions.
-
Compactness: Its space-saving design allows for easy installation in various marine environments.
-
Quiet Operation: Advanced noise reduction technologies provide a peaceful onboard atmosphere.
For more information or to purchase the Paguro 6000 Generator, please visit Tinsdale Marine.
