Description

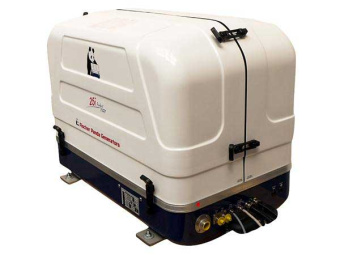

Discover the Fischer Panda FPMA1008, a powerful marine generator with 25 kVA output, designed for efficiency and reliability.
🔧 Technical Specifications
-
Model: Fischer Panda FPMA1008
-
Type: Marine Diesel Generator
-
Power Output:
-
Nominal: 20.0 kW / 25.0 kVA
-
Continuous: 18.0 kW / 22.5 kVA
-
-
Voltage: 400V AC
-
Frequency: 50 Hz
-
Phase: Three-phase
-
Engine: Kubota V1505-E3
-
Type: 4-cylinder, water-cooled
-
Displacement: 1498 cc
-
RPM Range: 1500–2800 RPM (variable speed)
-
Bore x Stroke: 78 mm x 78.4 mm
-
Cooling: Water-cooled
-
Oil Capacity: 6 L
-
-
Alternator: Inverter-based, producing pure sine wave output
-
Insulation Class: H
-
Dimensions: 840 mm (L) x 520 mm (W) x 664 mm (H)
-
Weight: 230 kg
-
Noise Level: 55 dB(A) at 7 meters
-
Cooling System: Dual-circuit water cooling
-
Control System: Digital display with optional CAN SAE J1939 interface
-
Fuel Type: Diesel
-
Fuel Consumption: Approximately 2.5–3.0 L/h at 75% load
-
Emissions Compliance: Meets EU RCD and EPA Tier 3 standards
⚙️ Key Features
-
Variable Speed Technology: Adjusts engine speed based on electrical load, optimizing fuel efficiency and reducing emissions.
-
Compact Design: Space-saving dimensions make it ideal for installations in confined engine rooms.
-
Quiet Operation: Low noise output ensures minimal disturbance on board.
-
High Starting Capacity: Capable of handling high inrush currents, suitable for operating air conditioning systems, watermakers, and other equipment with significant startup loads.
-
Pure Sine Wave Output: Provides stable and clean power, protecting sensitive electronics.
-
Dual-Circuit Cooling: Ensures optimal engine temperature, enhancing performance and longevity.
-
Remote Monitoring: Optional interfaces allow for integration with onboard monitoring systems.
🚤 Applications & Uses
The Fischer Panda FPMA1008 is designed for a variety of marine applications:
-
Yachts and Superyachts: Provides reliable power for luxury vessels, supporting systems such as HVAC, lighting, and entertainment.
-
Commercial Vessels: Ideal for fishing boats, charter vessels, and workboats requiring consistent power for onboard operations.
-
Expedition and Research Vessels: Supports scientific equipment, navigation systems, and communication tools.
-
Repowering Projects: An excellent choice for upgrading older vessels with modern, efficient power generation.
-
Off-Grid Marine Installations: Suitable for vessels operating in remote areas where shore power is unavailable.
💰 Pricing & Purchase Information
The Fischer Panda FPMA1008 is available for purchase at $49,291.14 USD. For more details or to place an order, visit Yacht-Supply24.
Alternatively, you can contact info@tinsdalemarine.com for inquiries or to purchase directly from Tinsdale Marine.
